BD-325 Class D Pro 2.0 Amplifier

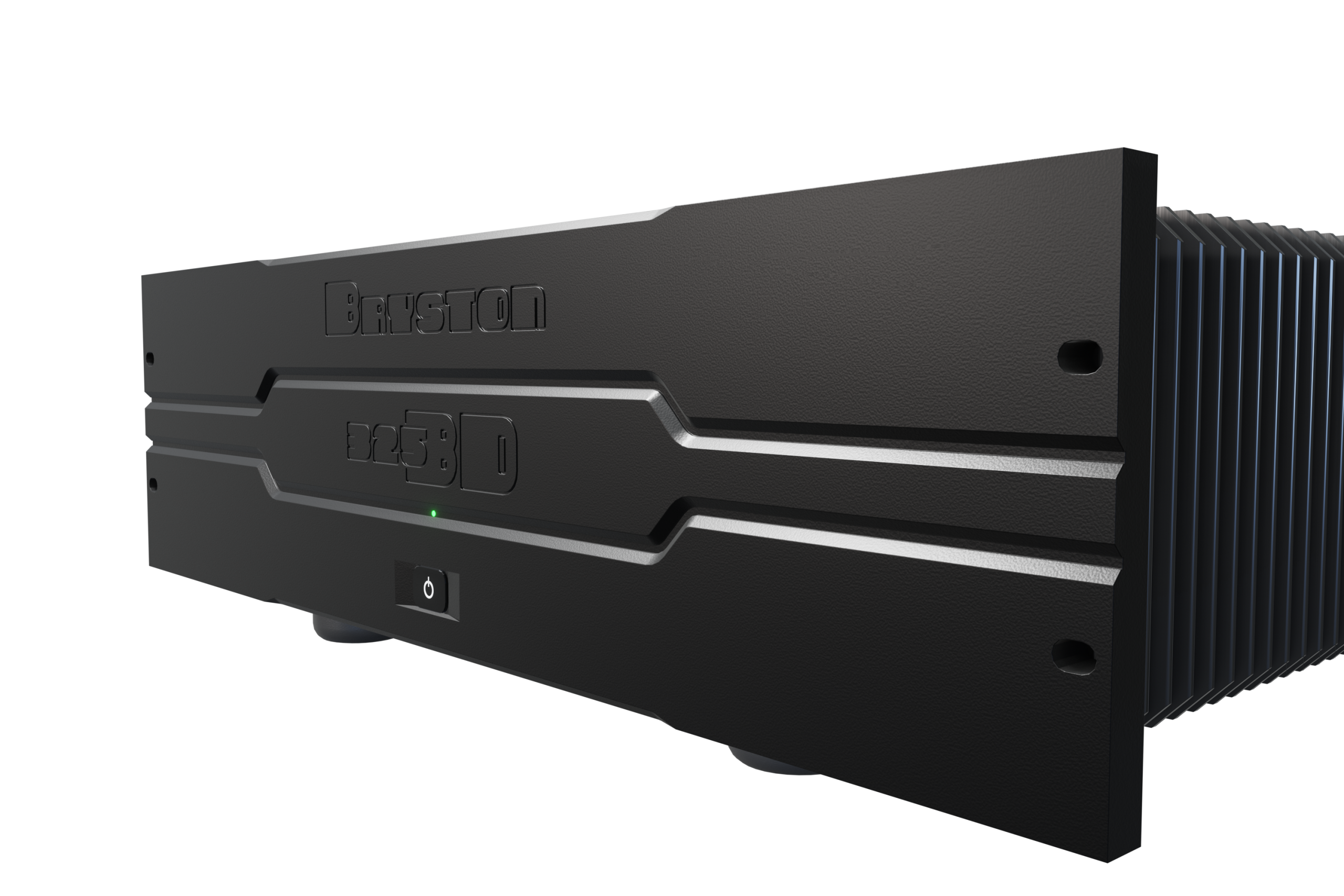

BD-325 2.0 Black Sideview (Pro RackMount)

A Class D amplifier is a type of audio amplifier that uses a digital switching technology to amplify audio signals. It is also known as a switching amplifier or a digital (erroneously) amplifier. Un- like traditional analog amplifiers, which use continuous voltage waveforms to amplify signals, Class D amplifiers employ a more efficient method that switches the input signal on and off rapidly.

Features

  • High Efficiency - Pulse Width Modulation
  • Reduced Heat Dissipation
  • Improved Power Handling
  • Dynamic Headroom
  • Flexibility
  • Linear Power Supply

Options

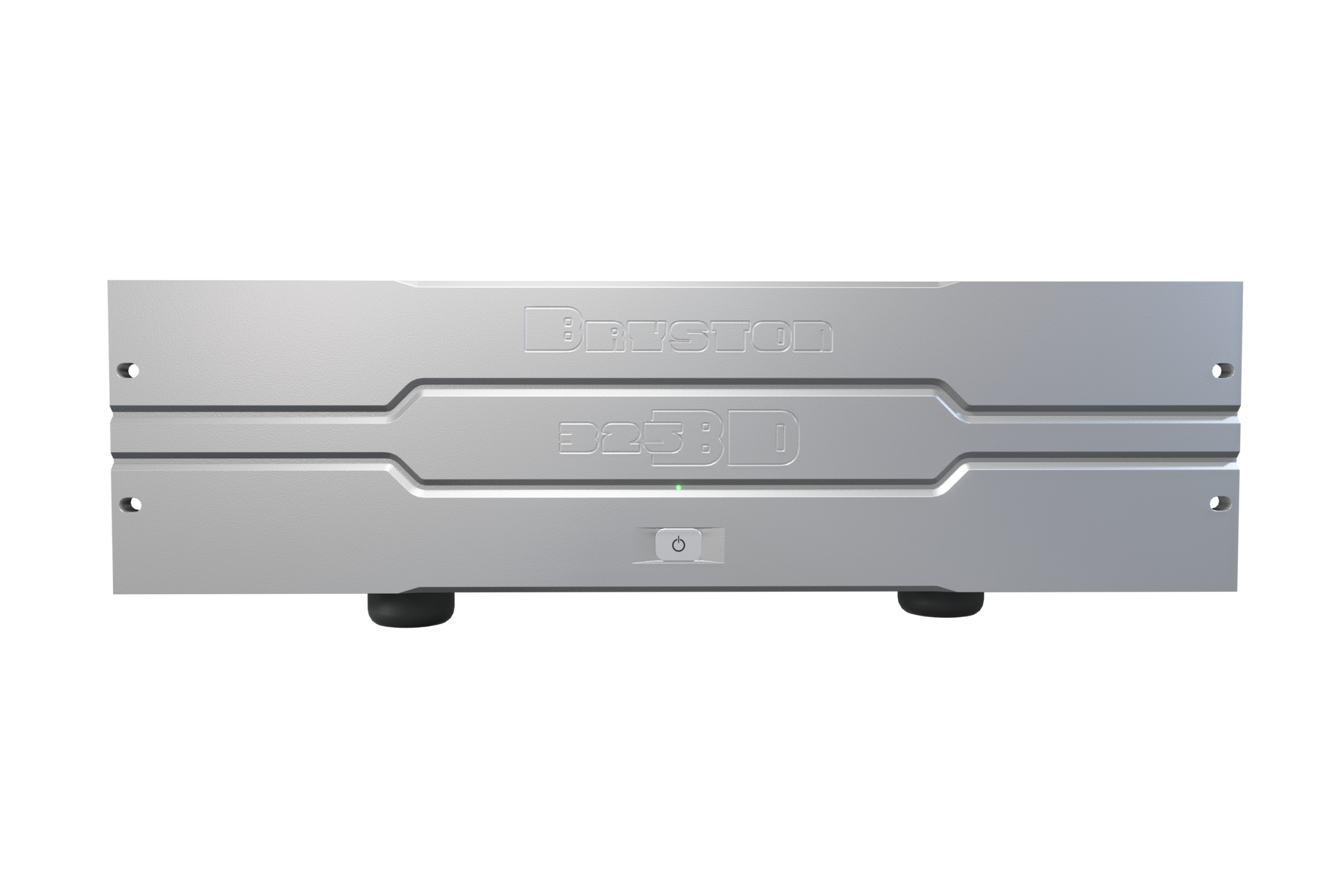

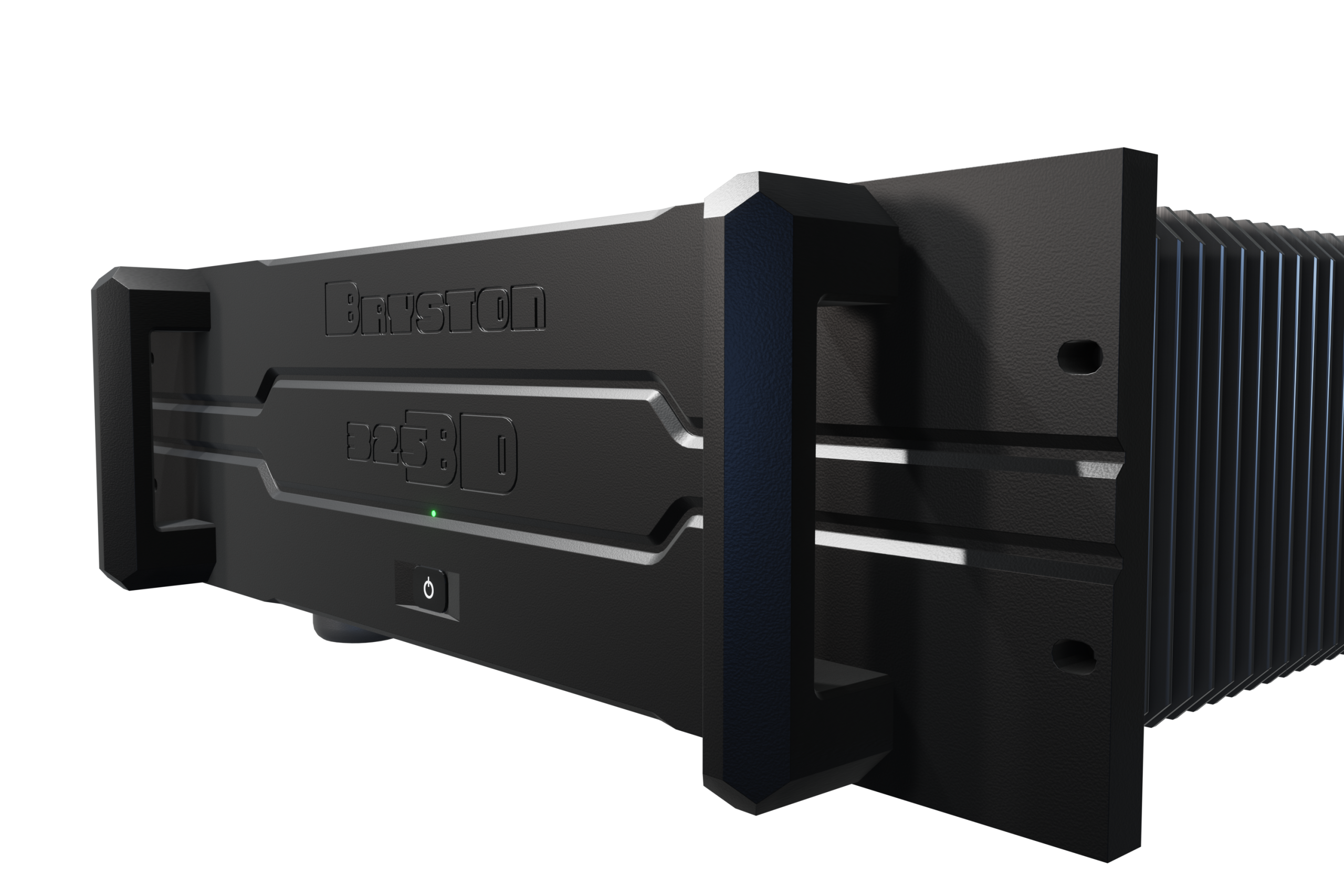

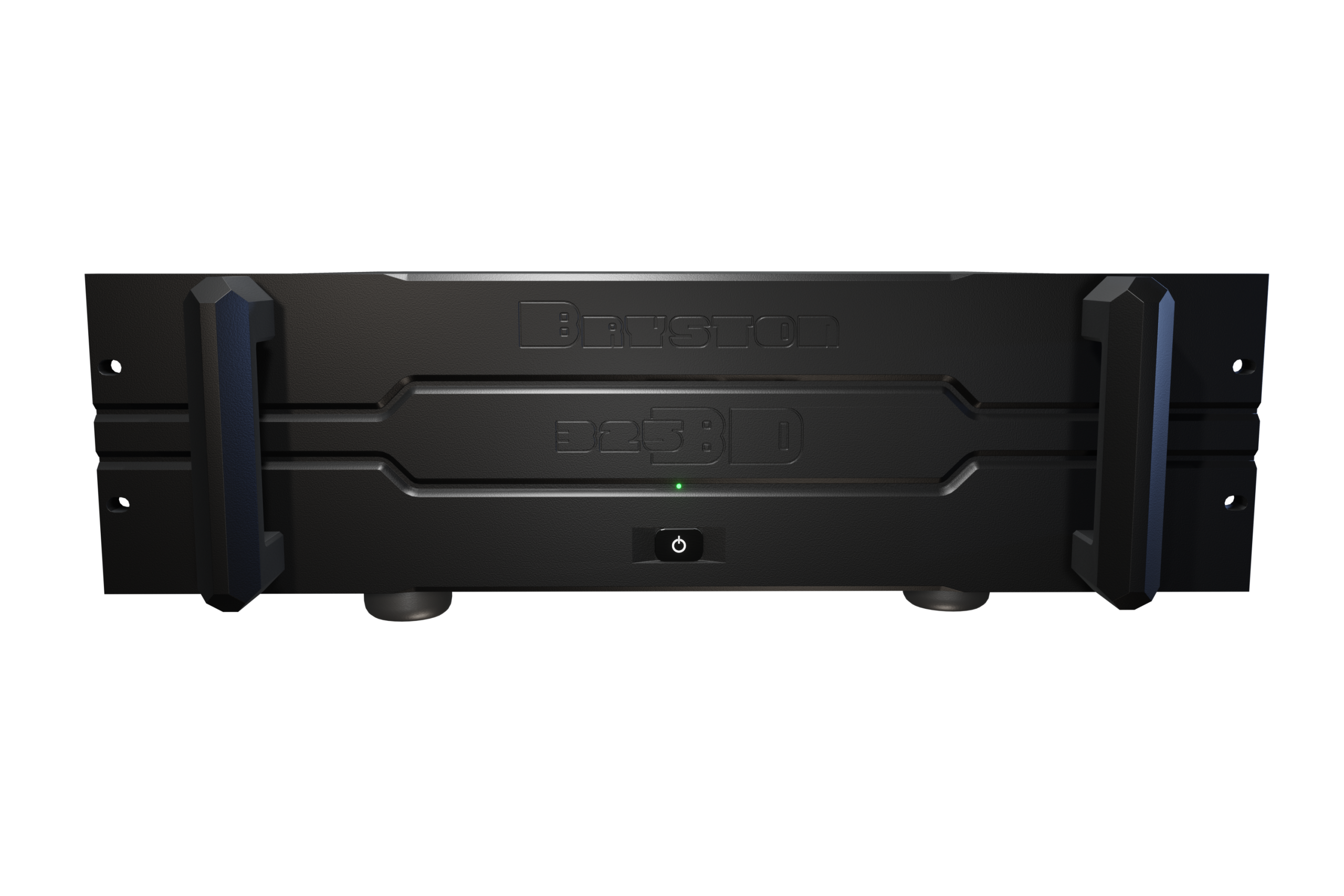

  • PRO rackmount faceplate
  • PRO rackmount faceplate, no handles
  • Available in 1-6 channels
Specifications
Frequency Response:1Hz - 50kHz: 6 ohms-3dB
Signal To Noise:105dB (at full power)
Sensitivity:2 volts
AC Input Voltage:115 or 230
Weight58 lbs | 26 kg
DimensionsInches: 17.75 W x 5.25 H x 16.75 D | Cm: 45.1 W x 13.3 H x 42.5 D
PowerContinuous RMS Wattage per channel into 8 ohms 325 watts
Continuous RMS Wattage per channel into 4 ohms 650 watts
Continuous RMS Wattage available to all channels 1500 watts
Dynamic Wattage (100ms) available to all channels 4500 watts


Brochure

Manual

Bryston_CanadianIcons

Made In Canada

bryston_logo_email

Built Tough and Backed by our Industry Leading Warranty

Bryston_CubeIcons

High Performance
