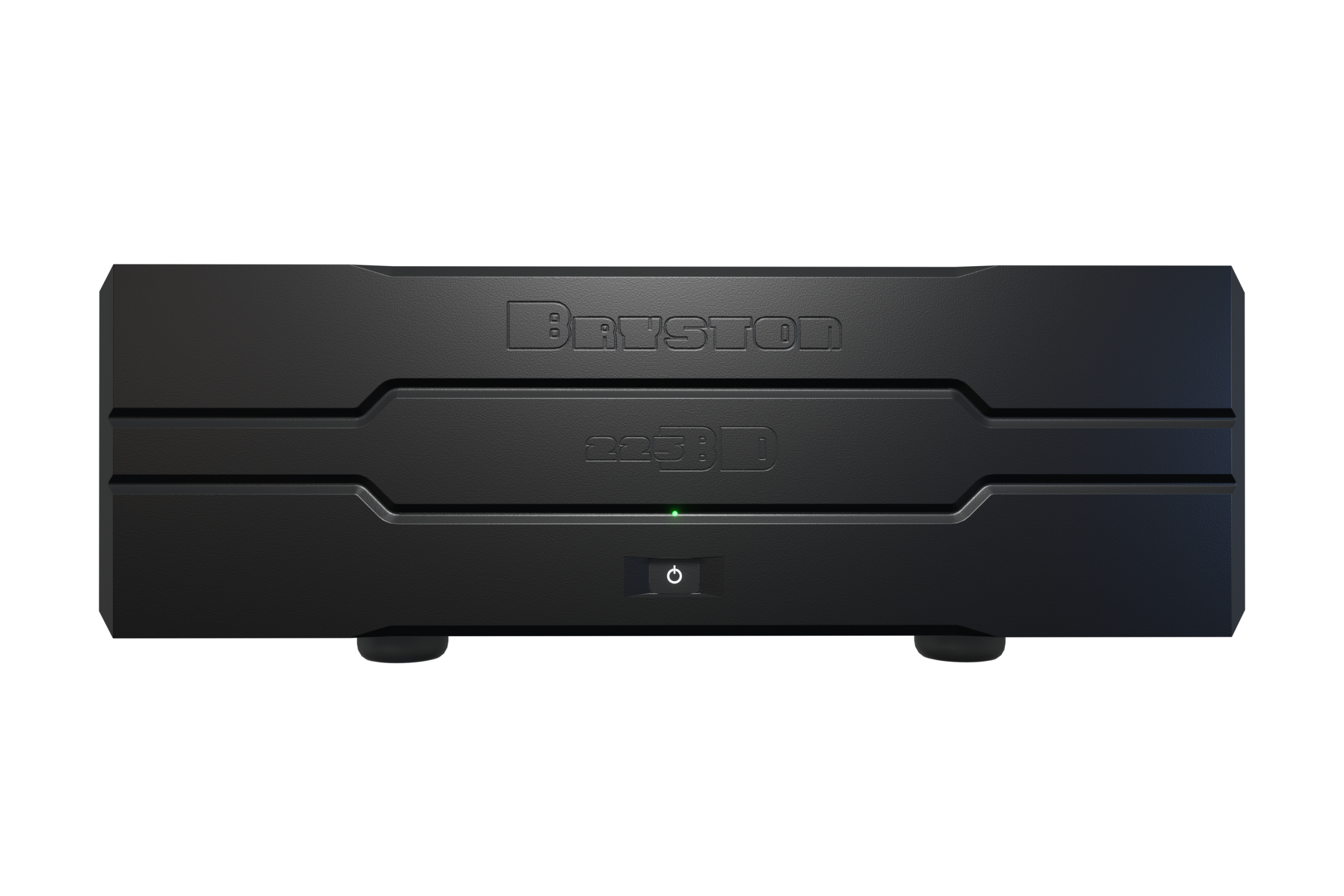

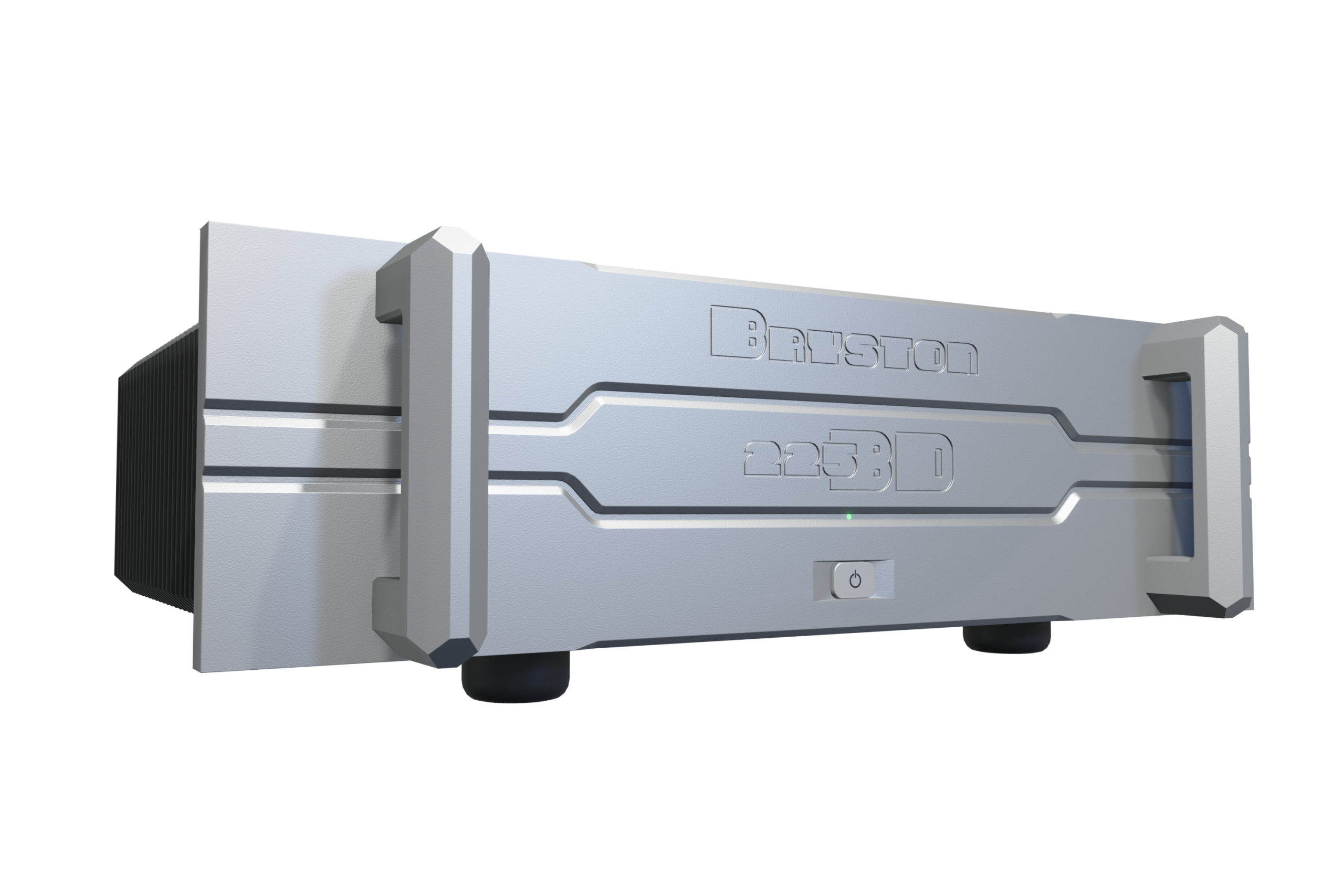

BD-225 Class D 2.0 Amplifier

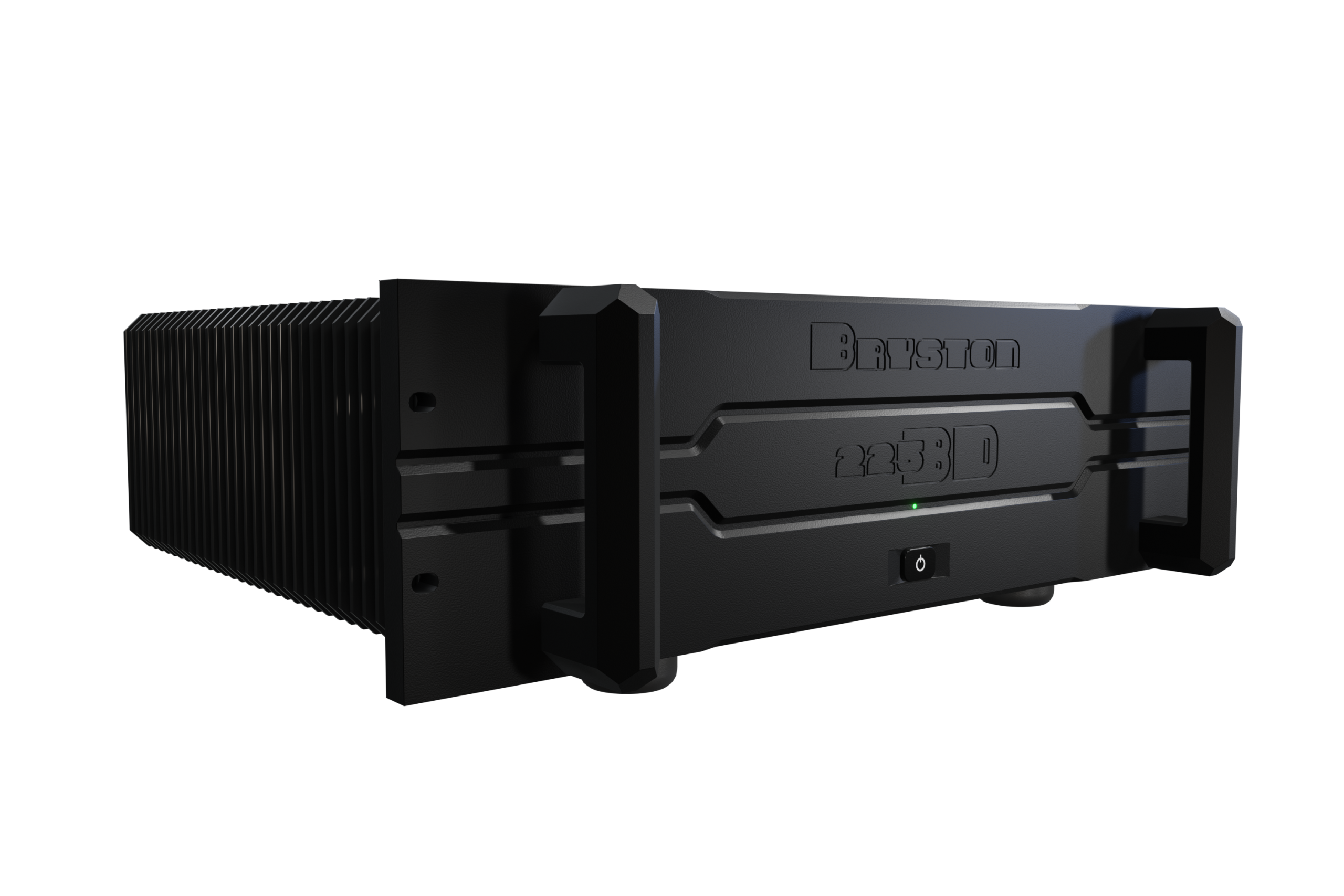

BD-225 2.0 Black Sideview (Pro RackMount with handles)

A Class D amplifier is a type of audio amplifier that uses a digital switching technology to amplify audio signals. It is also known as a switching amplifier or a digital (erroneously) amplifier. Un- like traditional analog amplifiers, which use continuous voltage waveforms to amplify signals, Class D amplifiers employ a more efficient method that switches the input signal on and off rapidly.

Features

  • High Efficiency - Pulse Width Modulation
  • Reduced Heat Dissipation
  • Improved Power Handling
  • Dynamic Headroom
  • Flexibility
  • Linear Power Supply

Options

  • Consumer faceplate, no handles
  • Consumer faceplate with handles

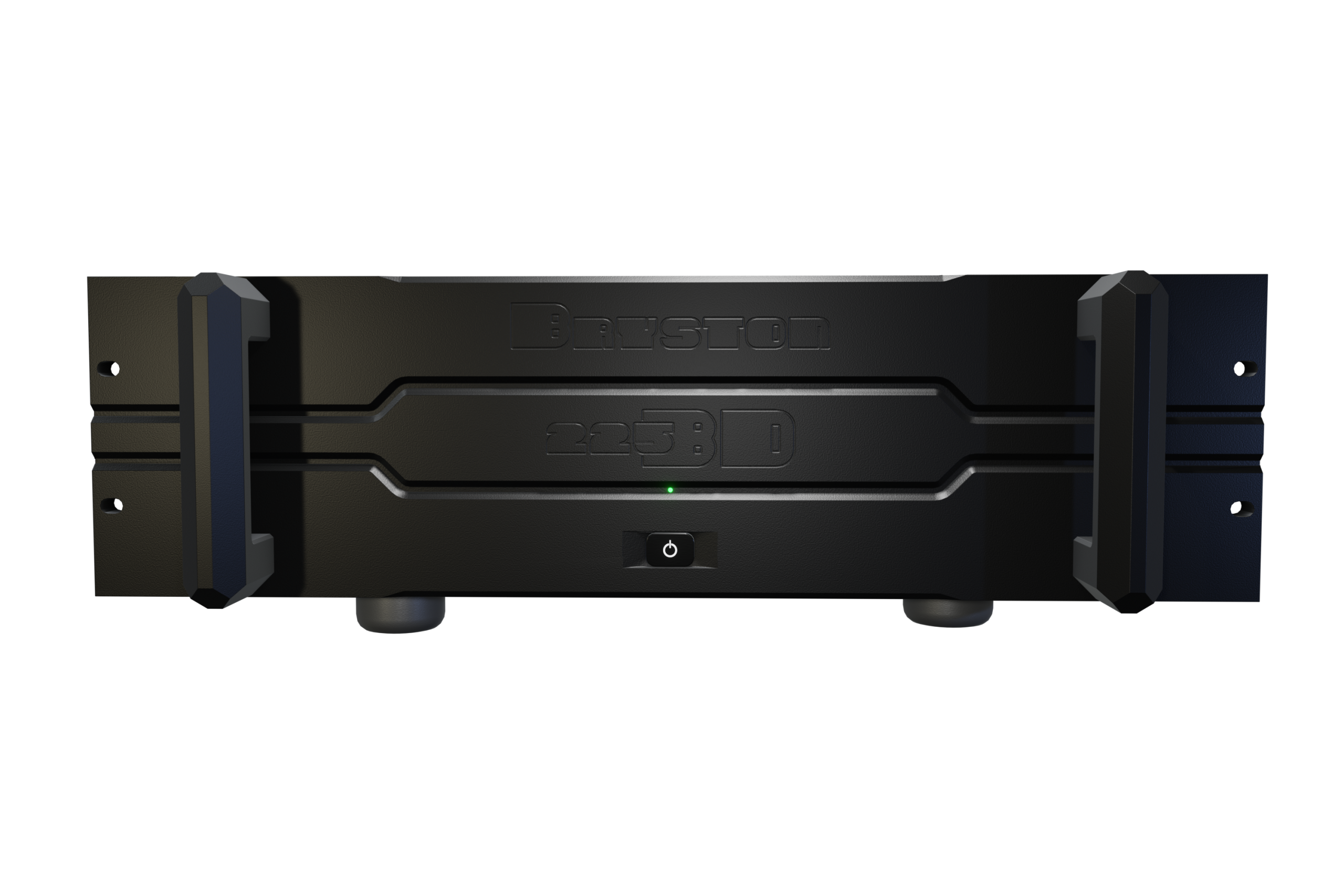

  • PRO rackmount faceplate
  • PRO rackmount faceplate, no handles
  • Available in 1-6 channels
Specifications
Frequency Response:1Hz - 45kHz: 6 ohms-3dB
Signal To Noise:103dB (at full power)
Sensitivity:1.5 volts
AC Input Voltage:115 or 230
Weight53 lbs | 24 kg
DimensionsInches: 17.75 W x 5.25 H x 16.75 D | Cm: 45.1 W x 13.3 H x 42.5 D
PowerContinuous RMS Wattage per channel into 8 ohms 225 watts
Continuous RMS Wattage per channel into 4 ohms 450 watts
Continuous RMS Wattage available to all channels 1250 watts
Dynamic Wattage (100ms) available to all channels 3750 watts


Brochure

Manual
